Print out the worksheet and draw a grid in 1 point perspective.
Follow the steps provided in the presentation below.
checkerboard
in 1 point perspective
by JuliannaKunstler.com
slides:
notes:
1. Draw a horizon line.
2. Place a vanishing point.
3. Draw the front edge of the board by drawing a horizontal line. Make it 8” long.
4. Divide the line by marking every inch..

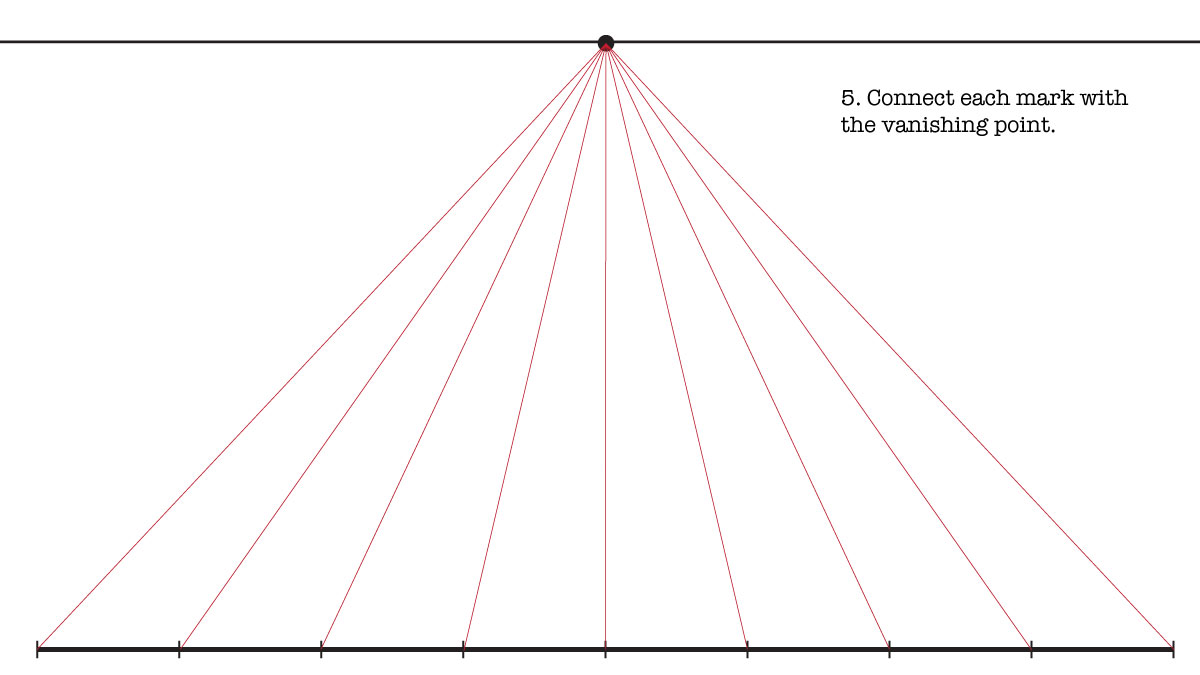

5. Connect each mark with the vanishing point.
6. Add depth by defining the back edge of the board.
Draw a horizontal line between the first and the last receding lines.

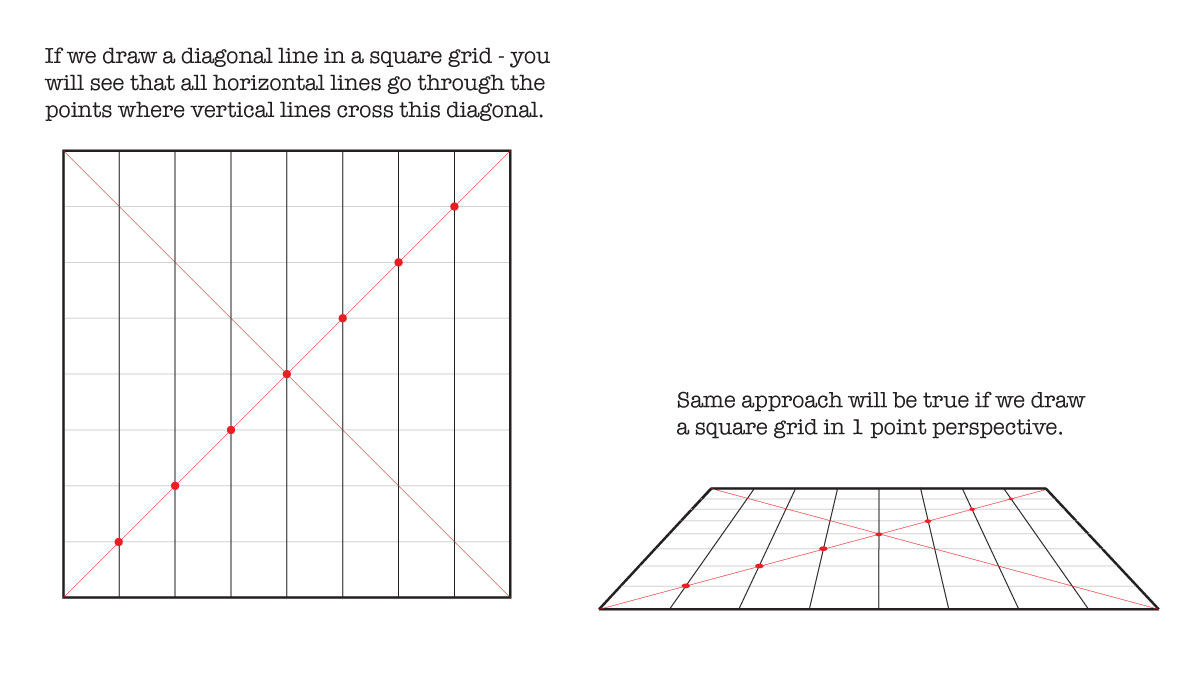

7. Draw 2 diagonal lines
8. Draw horizontal lines through the points where receding lines cross the diagonal lines.

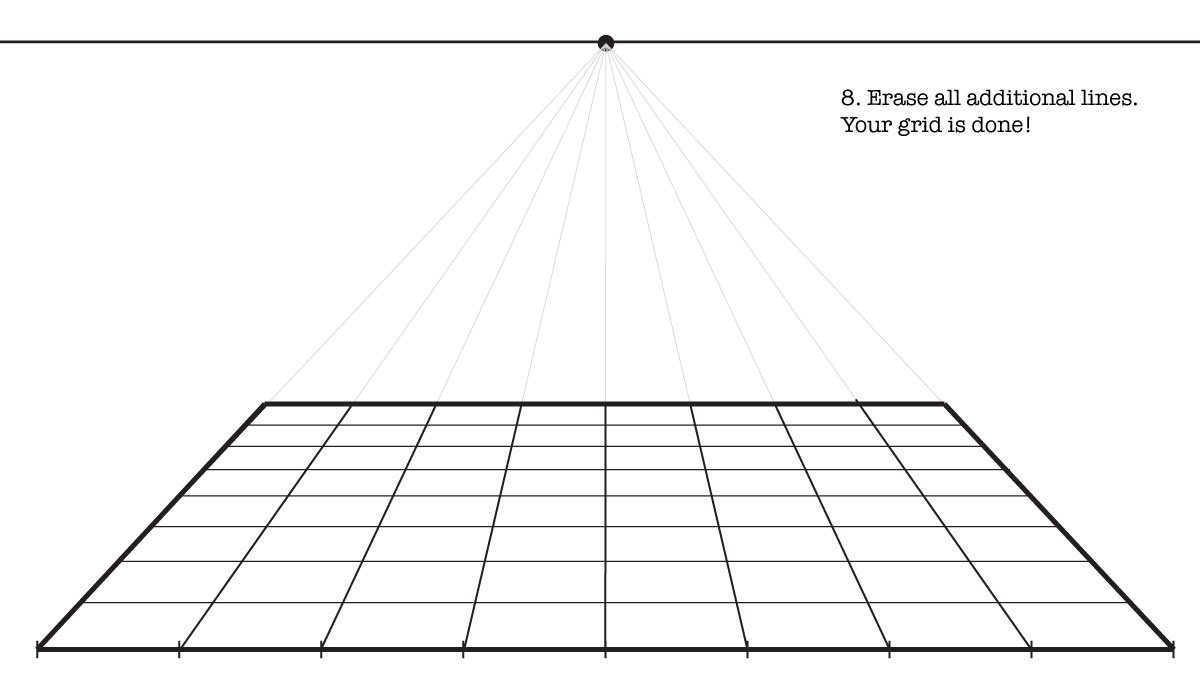

8. Erase all additional lines. Your grid is done!
.
...
